3 Meter
Fully Anechoic
EMC Chamber

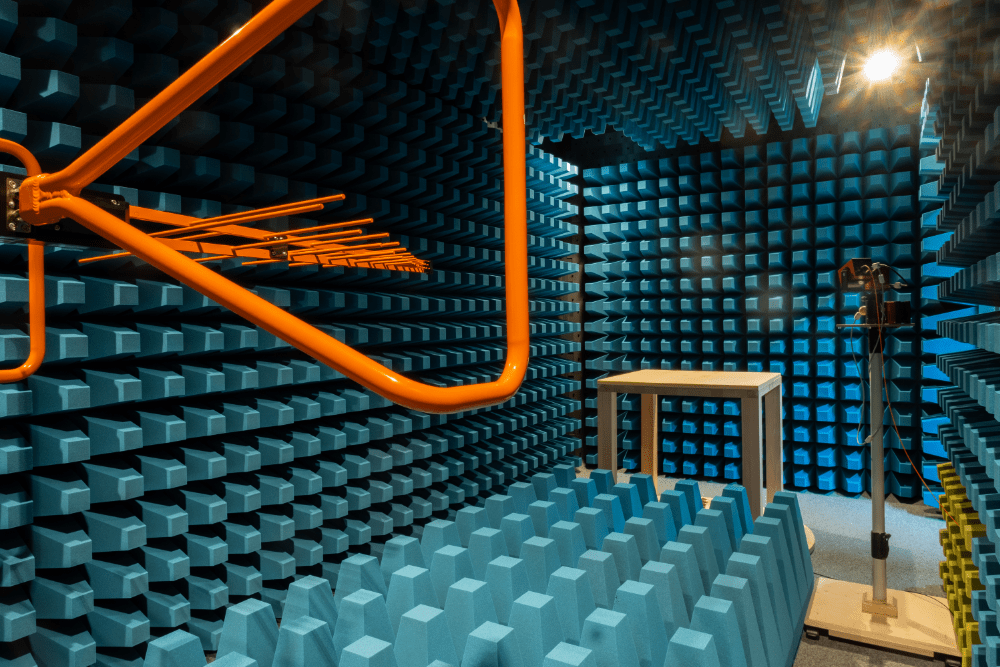

3 Meter Compact Fully Anechoic Chamber

QC3 COMPACT Fully Anechoic Chamber

The QC3 COMPACT Chamber provides a controlled environment, free from electromagnetic interference (EMI) and ambient RF signals entering or exiting the room. Fully compliant for emissions and immunity testing, the QC3 COMPACT allows for a 3-meter testing distance and is designed to fit into areas with limited space. QUANTUM chambers are built with anechoic foam on the walls, ceiling, and floor to ensure the best acoustical damping. All of our chambers are designed with a modular construction system and equipped with acoustic protection, LED ambient lighting, and EMC protection. We build to standard specifications or custom design a chamber to meet your requirements.


  • Magnetic: 55 dB @ 10kHz; 95dB @ 200kHz; 100 dB @ 1 MHz.
  • Electric: 100 dB from 15 kHz to 100 MHz
  • Planewave: 100 dB from 100 MHz to 1 GHz
  • Microwave: 100 dB at 10 GHz
  • Full Compliant Emission: CISPR 16-1-4
  • Full Compliant Immunity: IEC/EN 61000-4-3
  • Dimensions: 7m x 3m x 3m


  • Modular and pre-fabricated industrial design
  • Ferrite and hybrid pyramidal absorbers
  • Full compliant emission and immunity testing
  • Self-supporting stability


  • RF power line filters
  • Internal electrical distribution
  • RF signal filters
  • Honeycomb waveguide air vents
  • Bulkhead connector panels
  • Waveguide pipe penetrations
  • Custom frequency ranges
  • Audio communication
  • Power
  • Custom interior finishing
  • Acoustics damping
  • LED ambient lighting
  • TEMPEST shielding
  • Air conditioning
  • Test benches
  • Turntable
  • Fire detection
  • RF vestibules

Faraday CHAMBER Series

Consult with our specialists today
